Facilities: Bruker MRI/NMR 750 MHz

Magnet and Console

The Bruker 750MHz (17.6T) MRI/NMR System is capable of performing micro-imaging, in vivo imaging, solution NMR spectroscopy and solid-state NMR spectroscopy. The bore size of the magnet is 89 mm. The Ascend series of Bruker compact NMR magnets features advanced superconductor technology with a significant reduction in physical size and magnetic stray field. The magnet equipped with both wide bore (WB) and standard bore (SB) Bruker orthogonal shim systems, which provide excellent magnet field homogeneity. Vibration isolation posts are installed to reduce the effect of floor vibrations. A magnet stand with 1.05 m length offers easy access to the magnet bore.

Three actively shielded gradient assemblies are provided: Mini 0.5 (0.75 G/cm/A), Micro 2.5 (2.5 G/cm/A) and Micro 5 (5 G/cm/A).

The AVANCE III console provides highest speed RF generation and data acquisition with a highly modular and scalable transmitter and receiver channel architecture. Four transmitters (One proton and three X-nuclei) and four receivers are available for this MRI scanner. The system contains four 1H preamplifiers, one 2H preamplifier, and one preamplifier for X-nuclei.

Micro 5 Assembly

Bruker Micro5L micro imaging probe

Bruker Micro5L micro imaging probe

The probe is supplied with fixed 10 mm 1H Coil 2H lock channel Part No.:Z120191 SNR: 20000

Micro 2.5 Assembly

Bruker Micro-AHS/RF2.5-In Vivo MicroImaging probe

Bruker Micro-AHS/RF2.5-In Vivo MicroImaging probe

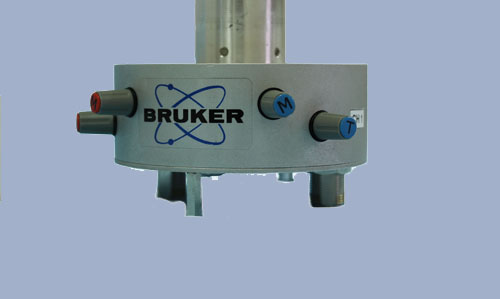

Part No.:T123368
Bruker Micro2.5 25mm circular polarized resonator

Bruker Micro2.5 25mm circular polarized resonator

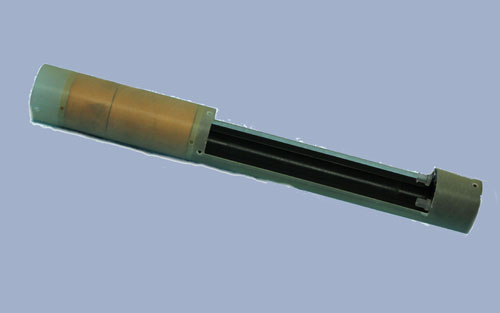

Part No.:T119979 SNR: 11000
M2M Micro-AHS/RF2.5-In Vivo MicroImaging probe

M2M Micro2.5 25mm 1H-19F/15N Resonator

Part No.: SNR: 8520
M2M Micro2.5 25mm 1H-19F/15N Resonator

M2M Micro2.5 25mm 1H-19F/15N Resonator

Part No.:H19695 SNR: 8520
M2M Micro2.5 25mm 1H-19F/17O Resonator

M2M Micro2.5 25mm 1H-19F/17O Resonator

Part No.:H19695 SNR: 8520
M2M Micro2.5 15mm ID SAW

M2M Micro2.5 15mm ID SAW

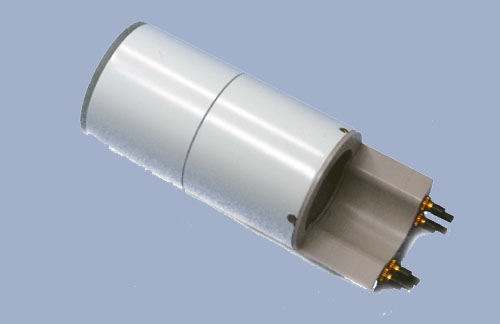

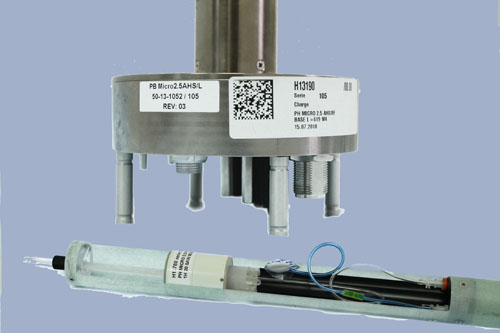

Part No.:H13521 SNR: 29114
M2M Micro2.5 20mm ID SAW

M2M Micro2.5 20mm ID SAW

Part No.:H13788 SNR:10028

Mini0.5 Assembly

Bruker 4 Segment Volume Resonator

Bruker 4 Segment Volume Resonator

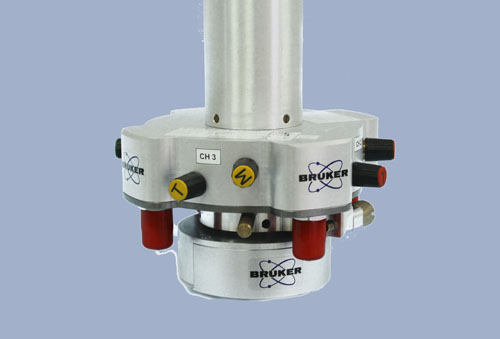

4 segment volume resonator for parallel imaging applications. Part No.:T125846/10

Solution NMR Probes

Bruker 5mm Double Channel Solution NMR Probe

Bruker 5mm Double Channel Solution NMR Probe

Inverse broadband (BBI) probe (5 mm sample diameter), 1H observe with broadband decoupling coil tunable from 109Ag to 31P with 1H decoupling. Including actively shielded Z-gradient coil for use with GRASP. Automatic Tuning and Matching (ATM) Accessory per
Bruker PA TXI H-C/N-D-05 XYZ NMR Probe

Bruker PA TXI H-C/N-D-05 XYZ NMR Probe

1H observe with 13C and 15N decoupling. Including actively shielded X,Y,Z-gradient coil. Automatic Tuning and Matching (ATM) Accessory permits computer control of tuning and matching from sample to sample for optimum automation. Part No.:Z131150 SNR:1700

Solid-State NMR Probe

Bruker BioSolids Triple Resonance DVT CPMAS probe

Bruker BioSolids Triple Resonance DVT CPMAS probe

single coil, triply tuned for 13C and 31P with 1H cross-polarization, 1.3mm rotor design with 65 kHz maximum spinning speed. Part No.:B7014/02 SNR:NONE

Gradients

Gradients

Gradients

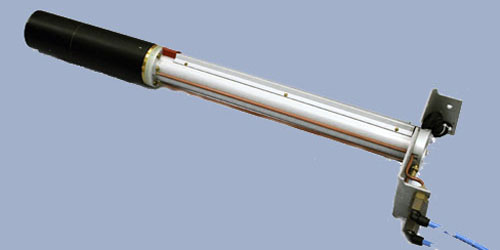

Micro 2.5 Gradient Actively shielded gradient assembly producing 2.5 G/cm/A (150G at 60A
Mini 0.5 Gradient

Mini 0.5 Gradient

Actively shielded gradient assembly producing 0.75 G/cm/A (45 G at 60A

Signal Amplification By Reversible Exchange (SABRE) Polarization

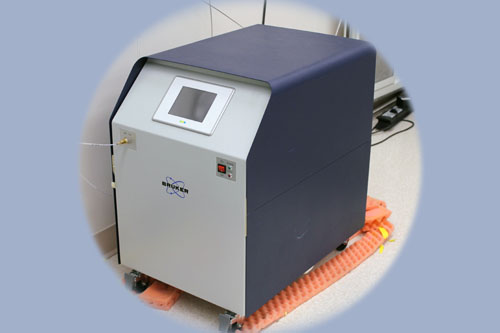

Parahydrogen Generator

Parahydrogen Generator

Parahydrogen was prepared by cooling the temperature of hydrogen gas to 36K in the presence of a metal catalyst.

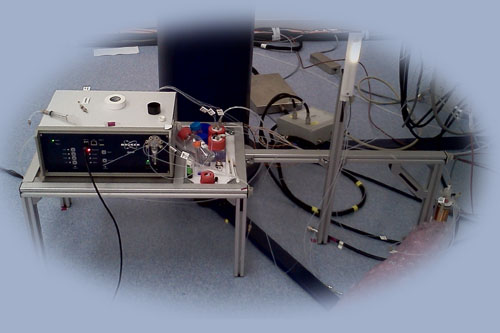

Mixing Chamber

Mixing Chamber
